ACCESSORIES
FITTINGS

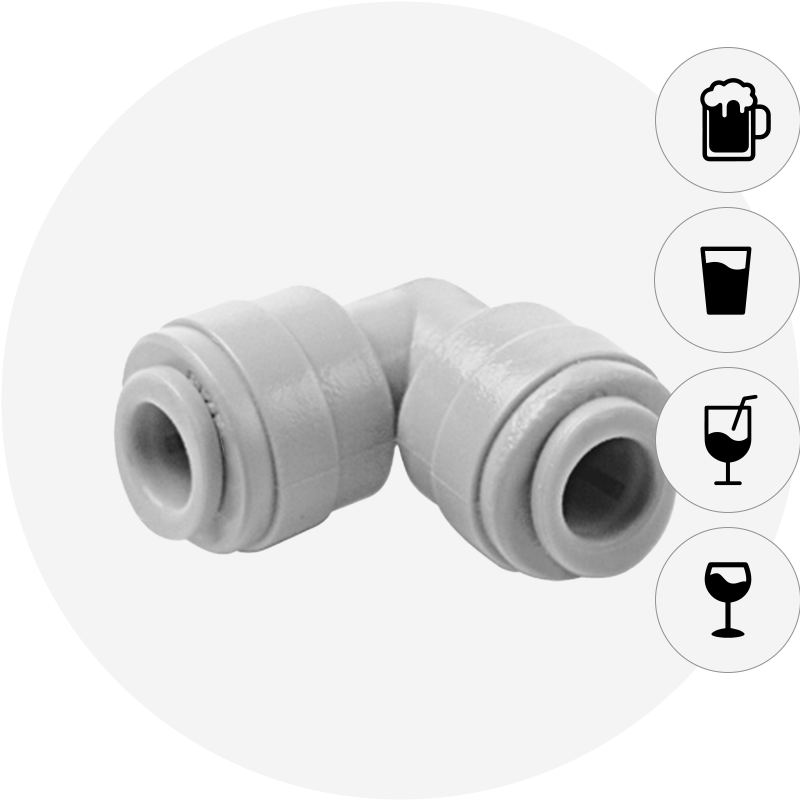

Elbow Union
Combinations:
5/32 – 5/32, 3/16 – 3/16, 1/4 – 1/4, 5/16 – 5/32, 5/16 – 3/16, 5/16 – 1/4, 5/16 – 5/16, 3/8 – 3/16, 3/8 – 1/4, 3/8 – 5/16, 3/8 – 3/8, 1/2 – 1/4, 1/2 – 5/16, 1/2 – 3/8, 1/2 – 1/2

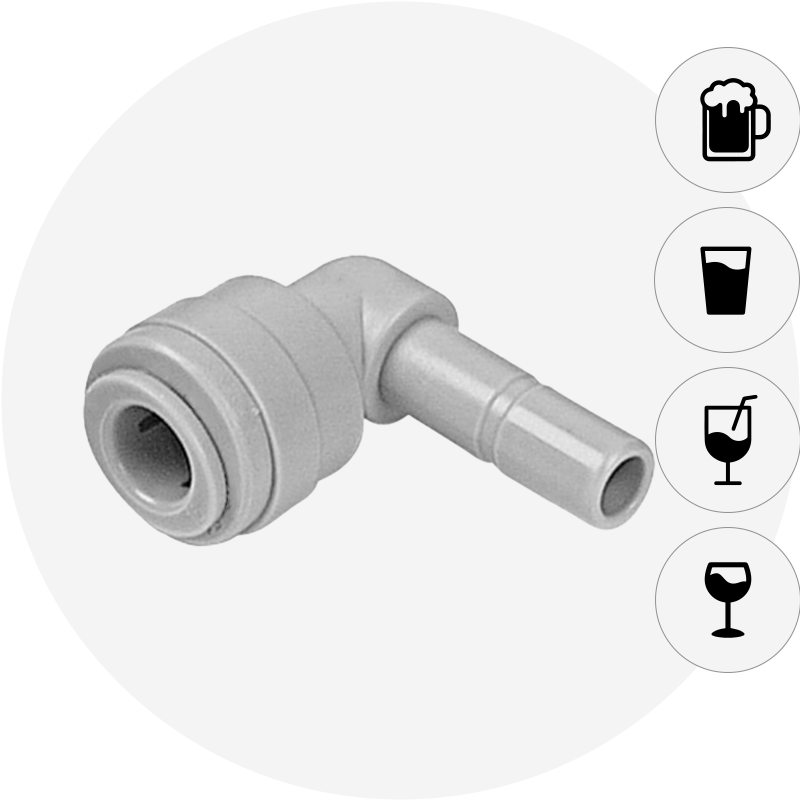

Stem Elbow
Combinations:
5/32 – 5/32, 3/16 – 3/16, 3/16 – 3/8, 1/4 – 1/4, 1/4 – 3/8, 5/16 – 5/16, 5/16 – 3/8, 3/8 – 3/8, 3/8 – 1/2, 1/2 – 1/2

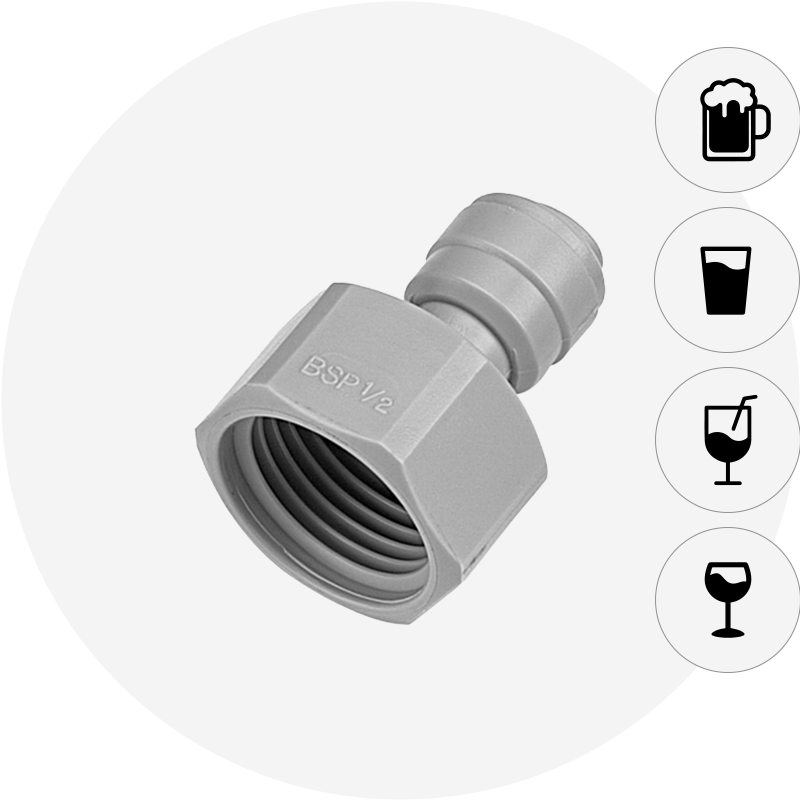

Female Adapter BSP(P) Thread (Flat Type)
Combinations:
5/16 – 5/8, 5/16 – 1/2, 3/8 – 1/2, 3/8 – 5/8, 1/2 – 3/8, 1/2 – 1/2, 1/2 – 5/8

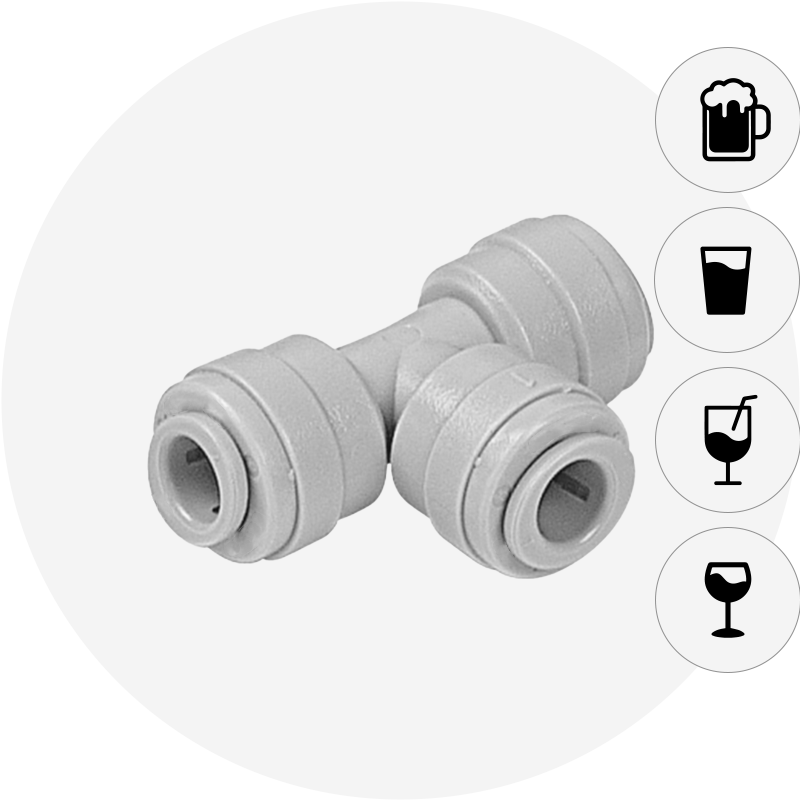

Tee Union
Combinations:
5/32 – 5/32, 3/16 – 3/16, 1/4 – 1/4, 5/16 – 5/16, 3/8 – 3/8, 1/2 – 1/2

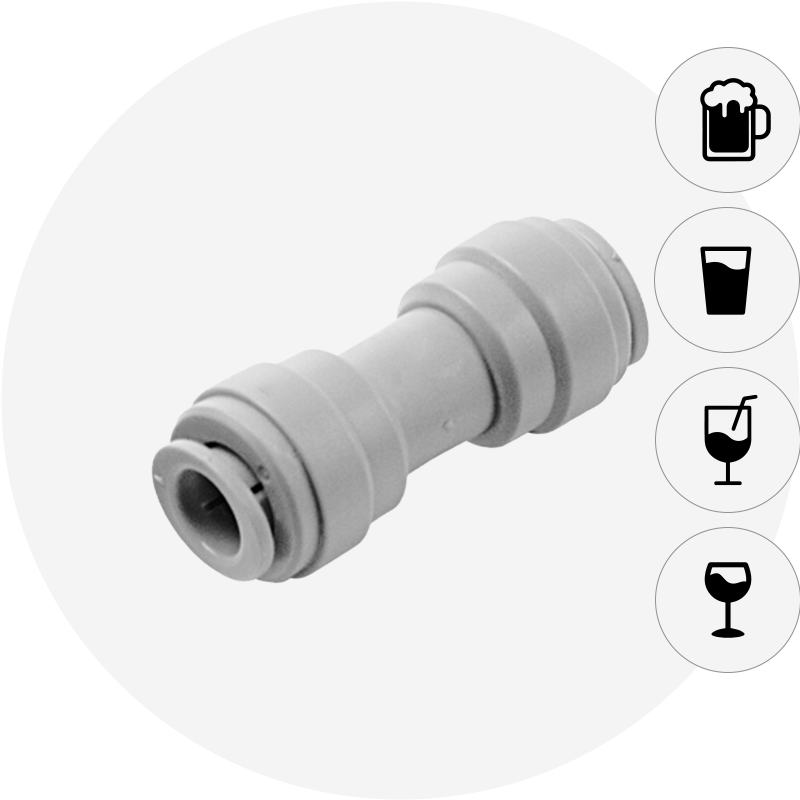

UC - Union Connector
Combinations:
5/32 – 5/32, 3/16 – 3/16, 1/4 – 5/32, 1/4 – 3/16, 1/4 – 1/4, 5/16 – 5/32, 5/16 – 3/16, 5/16 – 1/4, 5/16 – 5/16, 3/8 – 5/32, 3/8 – 3/16, 3/8 – 1/4, 3/8 – 5/16, 3/8 – 3/8, 1/2 – 5/16, 1/2 – 3/8, 1/2 – 1/2, 3/8 – 7.5 (mm)

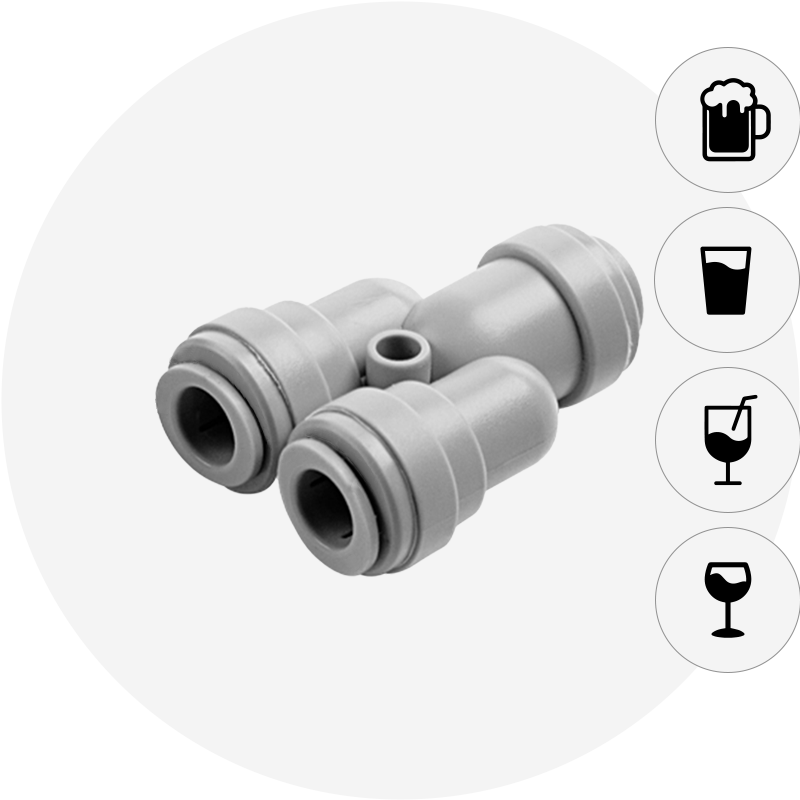

TWD - Two Way Divider
Combinations:
5/32 – 5/32, 1/4 – 1/4, 5/16 – 5/16, 3/8 – 5/16, 3/8 – 3/8, 3/8 – 1/2, 1/2 – 1/2,
THWD - THree Way Divider
Combinations:
3/8 – 1/4, 3/8 – 3/8, 1/2 – 3/8
PL - PLug
Dimensions:
5/32, 3/16, 1/4, 5/16, 3/8, 1/2
UB - U Bend
Dimensions:
1/4, 5/16, 3/8, 1/2
Filter Strainers Inch Size
Combinations:
1/4 – 1/4, 5/16 – 5/16, 3/8 – 3/8, 1/2 – 1/2
Power Elbow Union (Single)
Combinations:
5/16 – 5/16, 5/16 – 3/8, 3/8 – 1/4, 3/8 – 5/16, 3/8 – 3/8
Power Union Connector (Single)
Combinations:
5/16 – 5/16, 5/16 – 3/8, 3/8 – 1/4, 3/8 – 5/16, 3/8 – 3/8
Shut Off Valve
Combinations:
1/4 – 1/4, 5/16 – 5/16, 3/8 – 3/8, 1/2 – 1/2
Type: High-quality, reliable ball valve
Tube Compatibility: 5/16″ water filter tubing
Function: shutting off water supply to filter or cooler systems.
Applications: Reverse osmosis filters, Fridge filters, Fish tanks, Ice makers, Coffee machines, Home breweries, Water coolers, Hot water taps
T SS Connector
Weight: 0.010 kg
Material: Stainless Steel (SS)
Pipe Connection: 7-7-7 mm
Y SS Connector
Description: Metal connector used for joining hoses and other components of an installation system. Y-piece.
Material: AISI 304 Stainless Steel
Dimensions: 7.3 x 7.3 x 7.3 mm
Stainless Steel Splicer
Combinations:
1/4 – 1/4, 1/4 – 3/8, 3/8 – 3/8
U Bend Fitting
Material: 304 Stainless Steel
Dimensions: 1.75” x 1.25” with 1/4″ ID hose barb
Applications: Suitable for potable water, ice, glycol, beer, wine, and other beverages.
Plastic Straight Fitting
Features:
Function:
